EASTY FABRIC LASER CUTTING MACHINE

Panoramic fabric Laser Cutter for textiles PFC Series

Easty Heatpress for Sublimation Printer

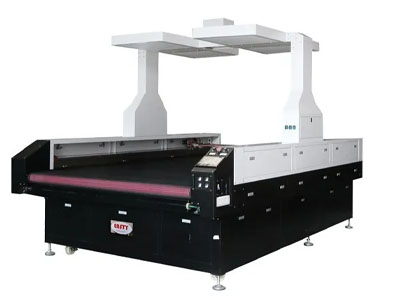

EASTY PFC SERIES

Panoramic Fabric Laser Cutting Machine for fabrics and textiles

Optimize your workflow with the Easty panoramic fabric laser cutting machine, a cutting-edge solution for the textile industry. Whether in fashion, sportswear, or technical textiles, this advanced system guarantees high output and precision, transforming your production capabilities. Engineered for large-format tasks, the Easty machine delivers smooth cutting edges and features high-temperature locking, eliminating manual drawing. Its intuitive design allows operators of all skill levels to achieve exceptional results quickly.

With Easty's automatic drawing and layout calculation software, the machine provides fully automated laser cutting, reducing labor costs and enhancing efficiency. Its precise alignment minimizes waste, while fast continuous curve cutting maximizes productivity. Additionally, automatic ventilation and smoke exhaust create a safer working environment. The Easty Panoramic fabric laser cutter enhances production capabilities and improves quality in textile processing, making it an essential asset for any progressive business.

Model PFC-1812 PFC-1812D PFC-1814 PFC-1816D PFC-1918D PFC-1822D PFC-1827D PFC-1633
Cut Size (W*L) m 1.8*1.2 1.8*1.1 1.8*1.35 1.8*1.4 1.9*1.6 1.8*2.0 1.8*2.5 1.6*3.3m
Laser Heads Single Dual Single Dual Dual Dual Dual Single
Laser Power 120-130w 130-150w 135-160w 130-170w(opt)
Laser Type Detached CO2 Laser Tube, branded laser lens
Machine Power ≤3500w
Camera Canon 1500D/R100 2400w SLR Camera
Cooling Method Constant Temperature Water Cooling
Control System Easty Control Software, LCD Display with User-Friendly Control Panel
Speed Engraving Speed: 0-1800mm/s; Cutting Speed: 0-600mm/s
Accuracy ±0.05mm
Voltage AC220V±10%, 50/60HZ, 10A max
Work Condition Temperature: 0°C-45°C; Humidity: 5% – 95%
Moving System CNC Control System with branded Stepper/Servo Motor, Aerospace Aluminum Guide Rails
Auto Feeding Herringbone Mesh Belt, Silicone Layer Feeding Roller
Parts 750W Fan, Electromagnetic Air Compressor, and Refrigerated Constant Temperature Water Tank
Data Format DWD / DXF / JPEG / AI / TIFF / PLT / CDR / BMP / GIF etc.
Data Transfer USB to PC, Direct Output from CAD
Packing Size 2.56*2.25*1.6m 2.56*2.25*1.6m 2.56*2.27*1.6m 2.56*2.25*1.5m 2.65*2.27*1.5m 3.1*2.32*1.63m 3.6*2.32*1.63m 4.2*2.3*1.4m
N.W. / G.W. 1045kgs 1045kgs 1145kgs 1045kgs 1075kgs 1315kgs 1350kgs 1500kgs
Gross Weight 1175kgs 1175kgs 1200kgs 1105kgs 1175kgs 1400kgs 1450kgs 1700kgs

*Download Brochure

Highlights of the EASTY PFC SERIES

  • Apparel: Sportswear, cycling wear, swimwear, and dance wear.
  • Home Textiles: Curtains, cushions, and upholstery materials.
  • Footwear and Accessories: Shoes, handbags, gloves, and lace.
  • Automotive: Car seats and leather.
  • Toys and Crafts: Plush cloth toys and paper products.
  • Technical Textiles: Filters, heat protection fabrics, and sails.
  • Energy Efficient: Designed for first-level energy efficiency, significantly reducing power consumption.
  • Accurate Alignment Cutting: Minimizes material waste with precise cutting accuracy of ±0.05mm.
  • Fast Curve Continuous Cutting: Handles complex designs seamlessly without interruptions.
  • Patented Design: Features a recessed laser tube and portable structure for more uniform light speed and enhanced stability.
  • Vision Processor Software: Simplifies operation, making it easier for users to adapt.
  • User-Friendly Operation: Intuitive interface allows easy use for individuals with varying technical skills.
  • LCD Touch Screen: Offers intuitive tracking of working hours and production output.
  • High Output: Engineered for rapid production, ensuring quick processing and timely delivery.
  • Smooth Cutting Edges: Produces clean cuts that require minimal finishing, enhancing product quality.
  • High-Temperature Locking: Maintains material integrity during cutting, preventing warping and distortion.
  • Full Automation: Features Easty software for complete automation, lowering labor costs and boosting efficiency.
  • Automatic Ventilation and Smoke Exhaust: Improves the working environment by effectively removing fumes and dust.
  • Low Maintenance: Requires minimal upkeep with few replacement parts needed.
  • Large Format Cutting: Accommodates extensive fabric sizes, making it suitable for a variety of applications.

    • GALLERY

    EASTY FABRIC LASER CUTTING MACHINE
    EASTY FABRIC LASER CUTTING MACHINE
    EASTY FABRIC LASER CUTTING MACHINE

    Watch how it works

    We offer only the best machines that cater to your specific requirements, but don't just take our word for it, we want you to see the machine in action! Watch this short feature clip of this machine.

    If you feel that this may be the perfect machine for your needs, our team will be more than happy to schedule an actual demo for you
